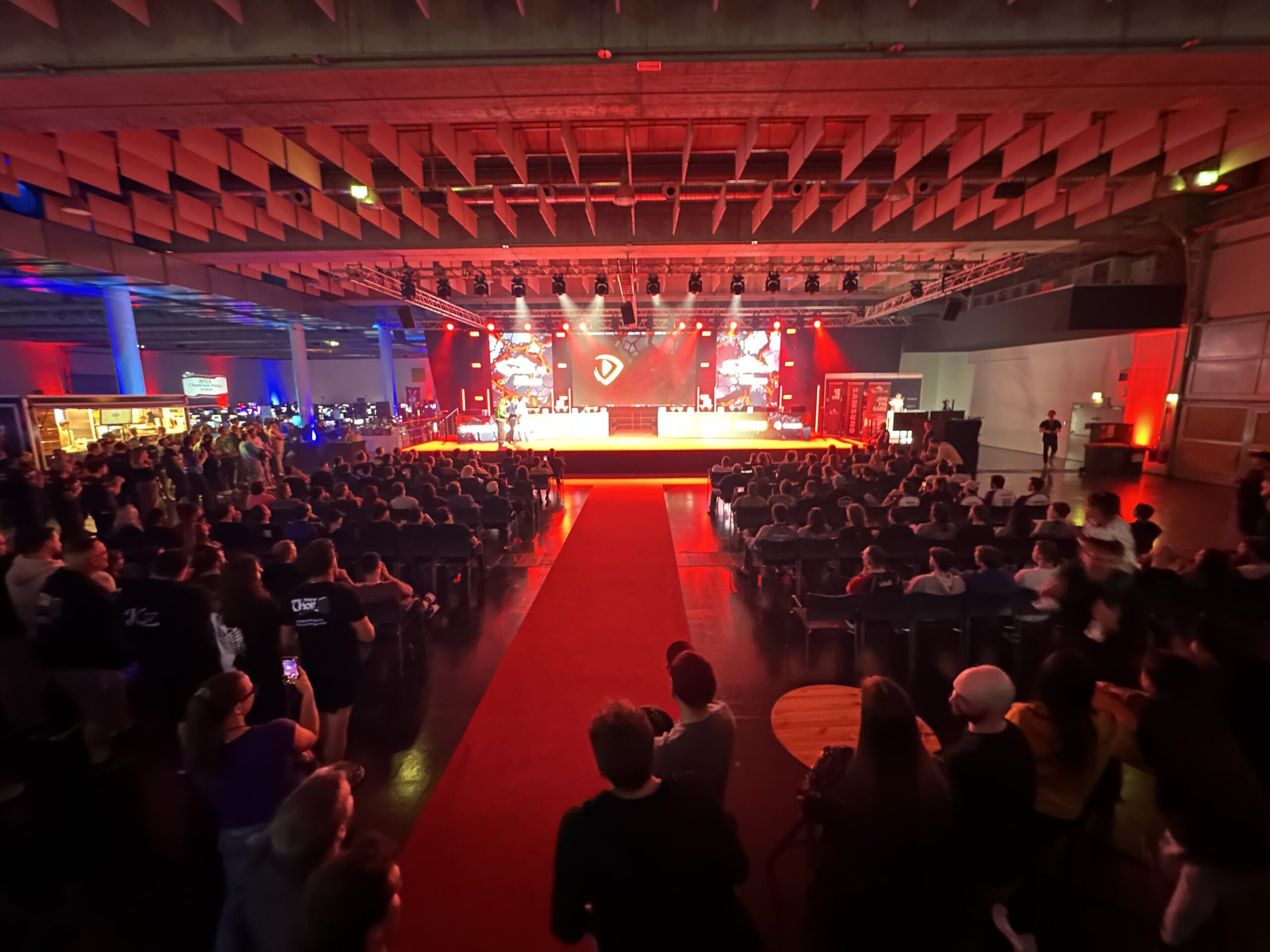

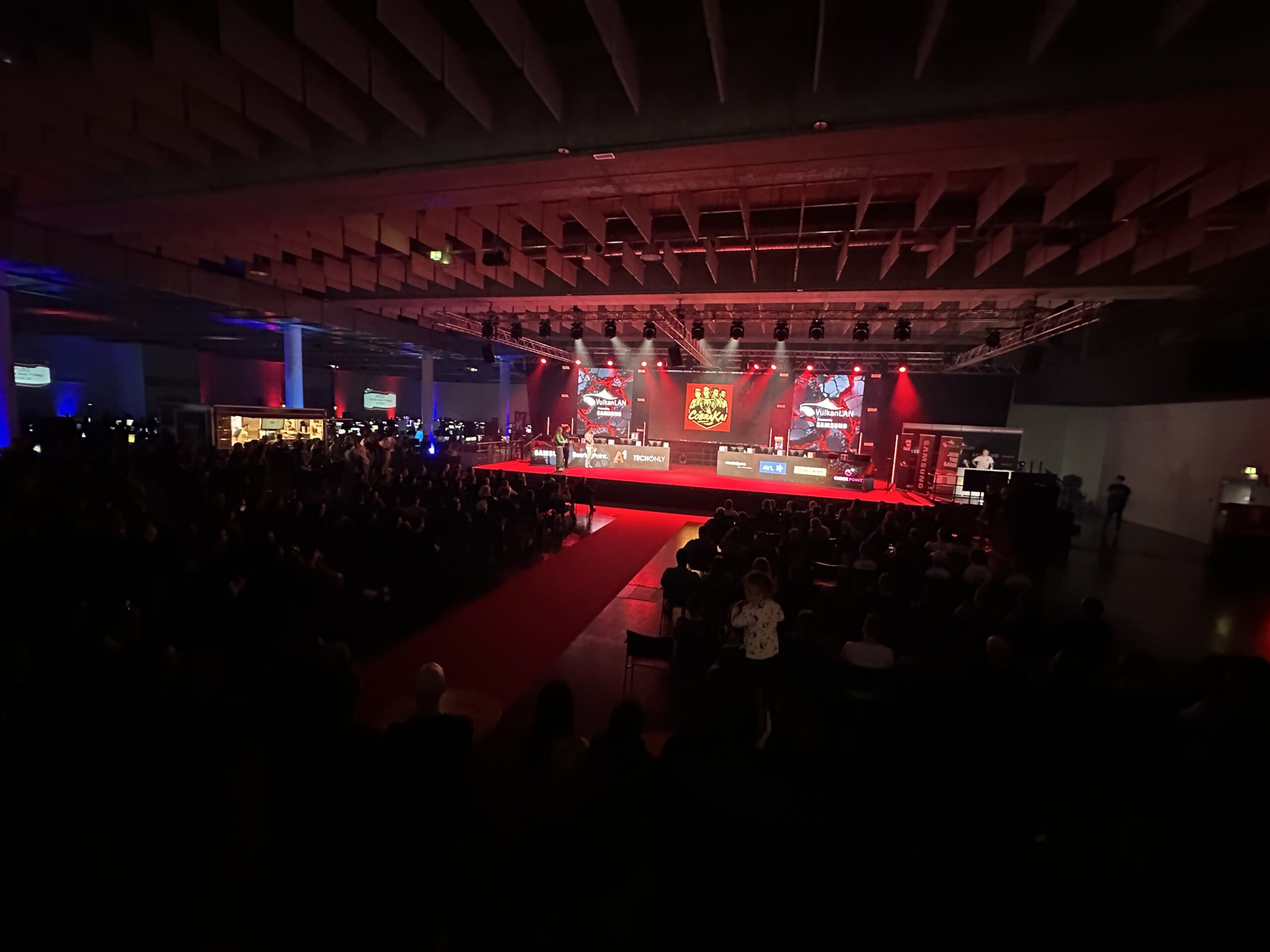

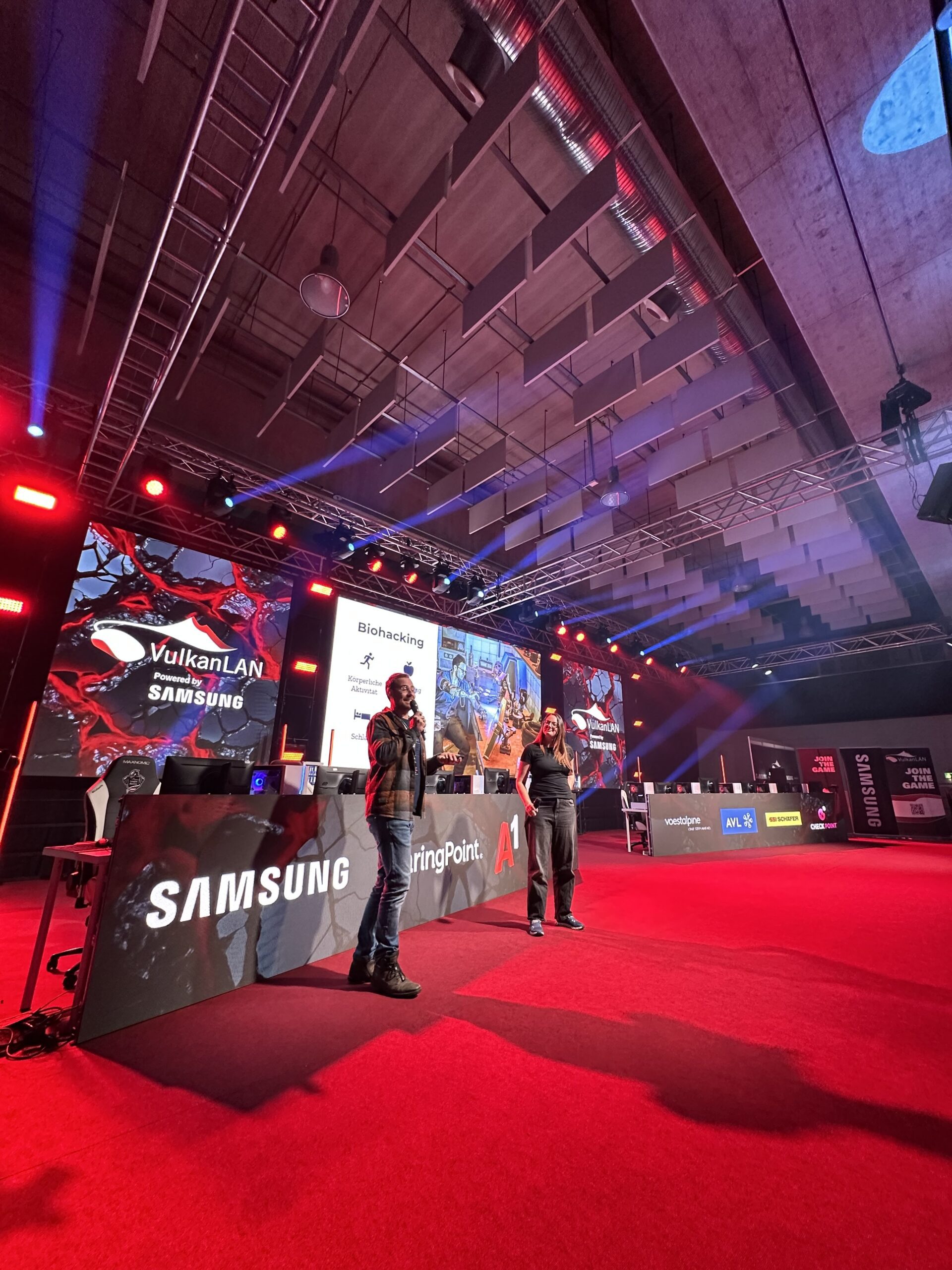

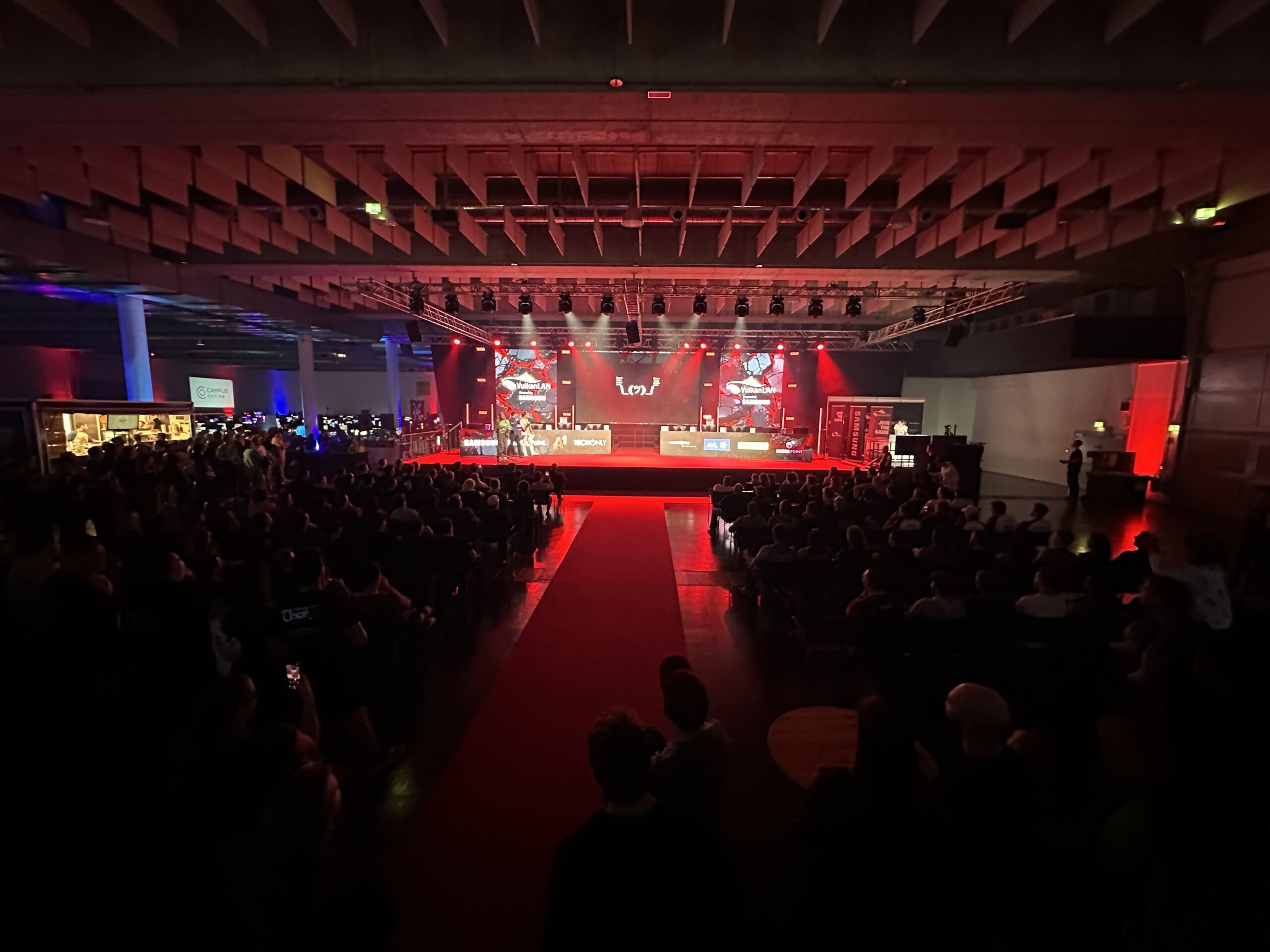

Na največjem avstrijskem lanpartyju, ki je potekal med 24. in 26. oktobrom 2025, smo v celoti prevzeli izvedbo glavnega odra in produkcijo prenosa v živo, na katerem smo v treh dneh dogajanja izvedli več kot 40 ur programa.
Sound Equipment:
- 1x Wireless set Sennheiser EW-D (2x beltpack with Rode HS2P beige headworn microphone, 2x handheld microphone)
- 2x Beyerdynamic IEM kit
- Mixer MIDAS M32 + DL32 digital stage box
- 3x CT 112 top
- 4x CT 118 sub
- 2x Labgruppen FB 10000
- 1x HK Firnet
- Beyerdynamic MC 930 Stereo set (audience)
- Audio-Technica BPHS2C with Behringer P2 IEM (2x commentators), Audio-Technica BPHS1 with Behringer P2 IEM (1x commentator)
- Dedicated technician/operator for control
Lighting Equipment
- 12x Showtec Expression 33000 Zoom (for stage front light)
- 1x Pea Soup CO2 (professional TV Fog) + external DMX Fan
- 16x Cameo AZOR S2
- 14x Highlite iW Pixel Wash
- 12x Cameo OTOS W6
- 12x FOS F-6 Go
- 8x ADR tube light 2m
- 1x Avolite D7-330 Mixer
- 8x Nanlite Pavo Tube II XR
- Dedicated technician/operator for control

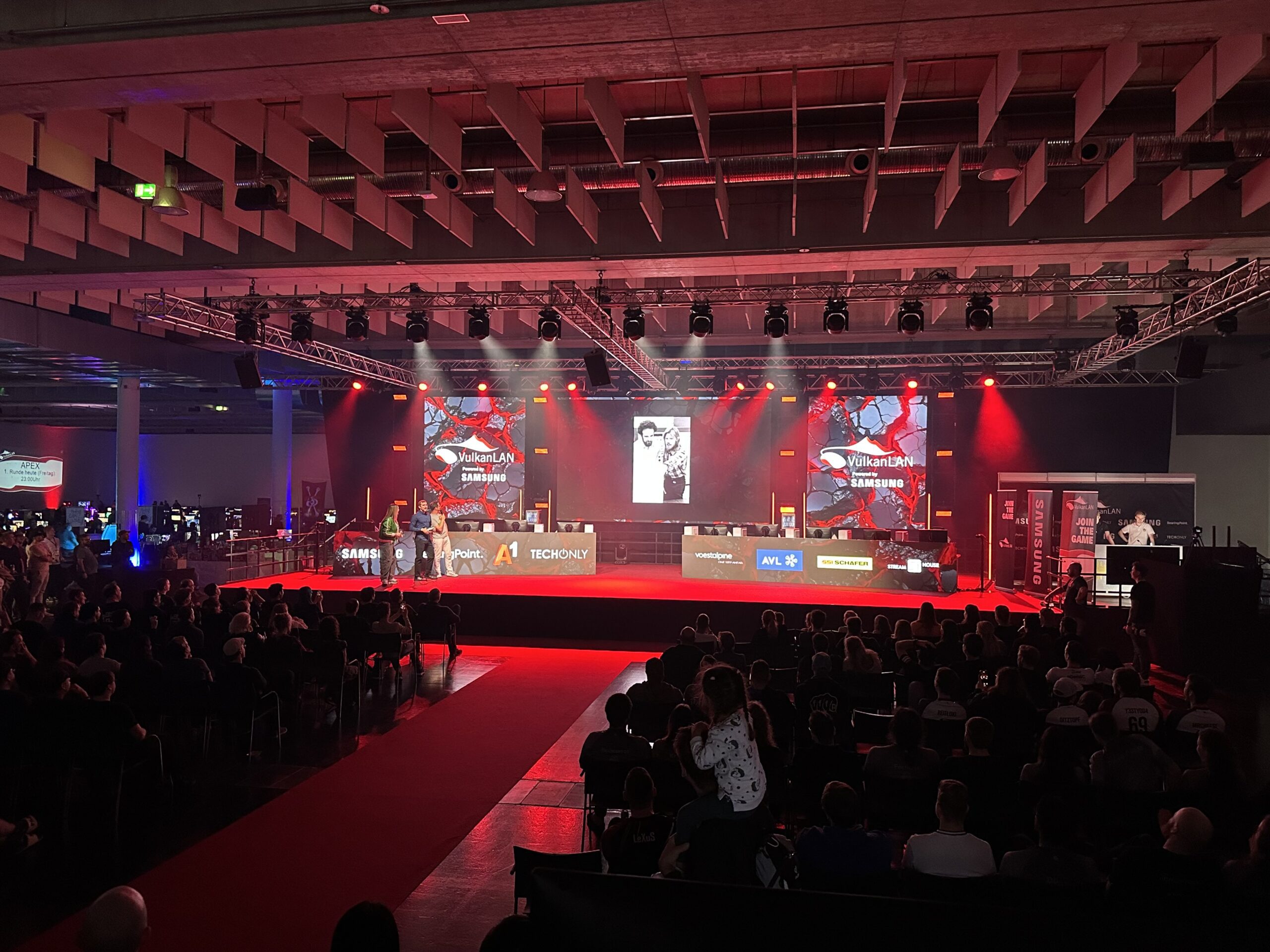

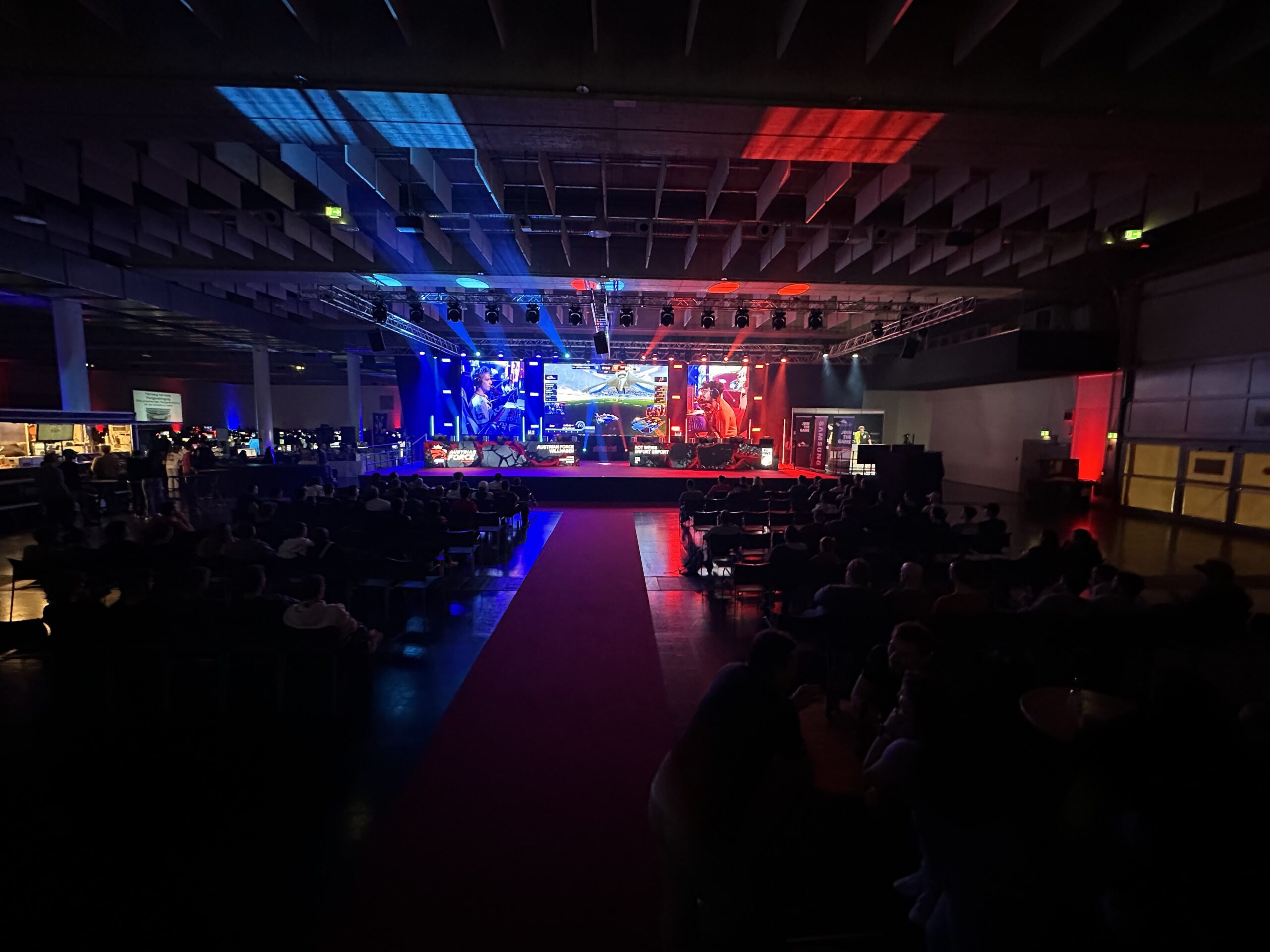

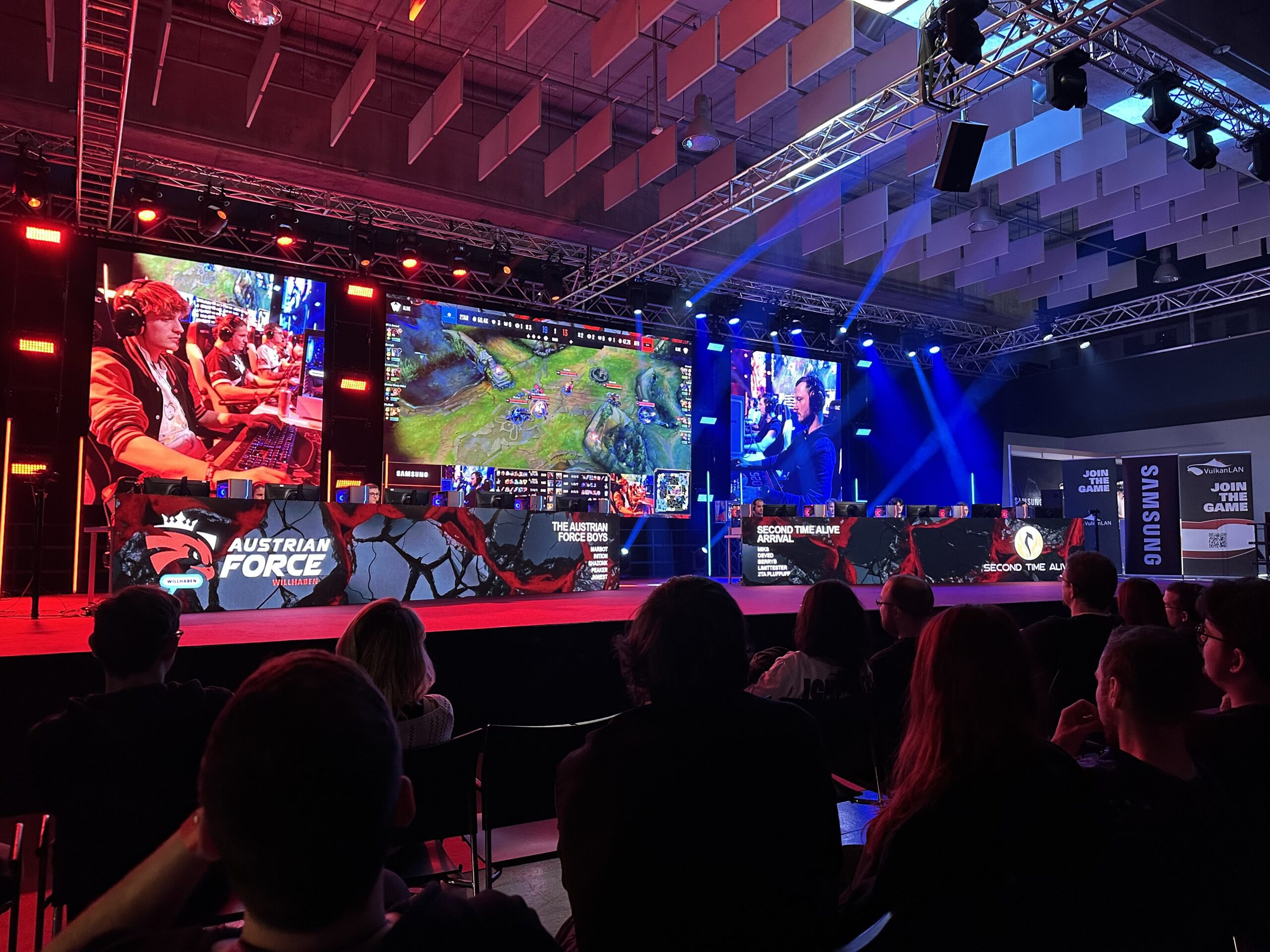

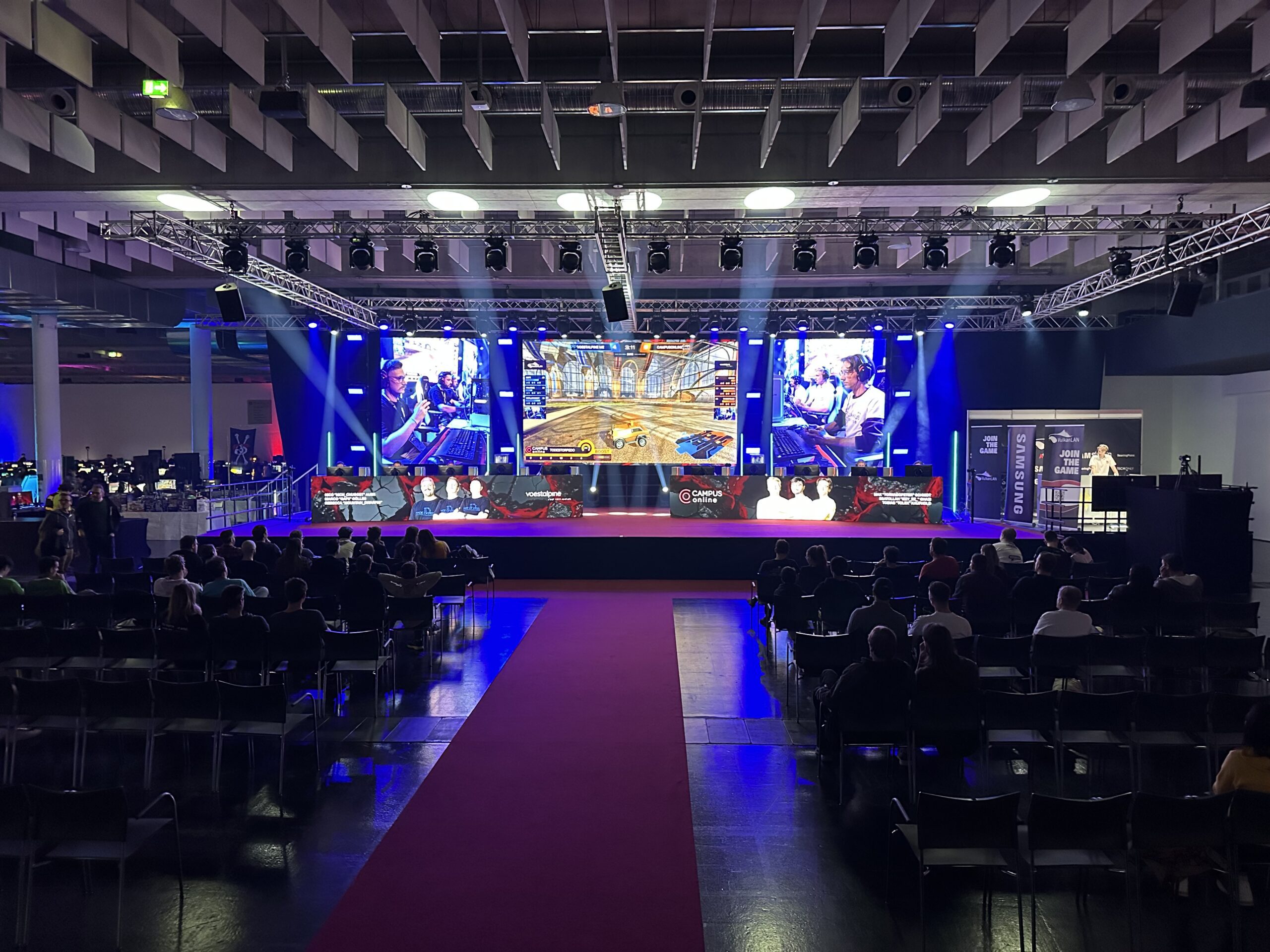

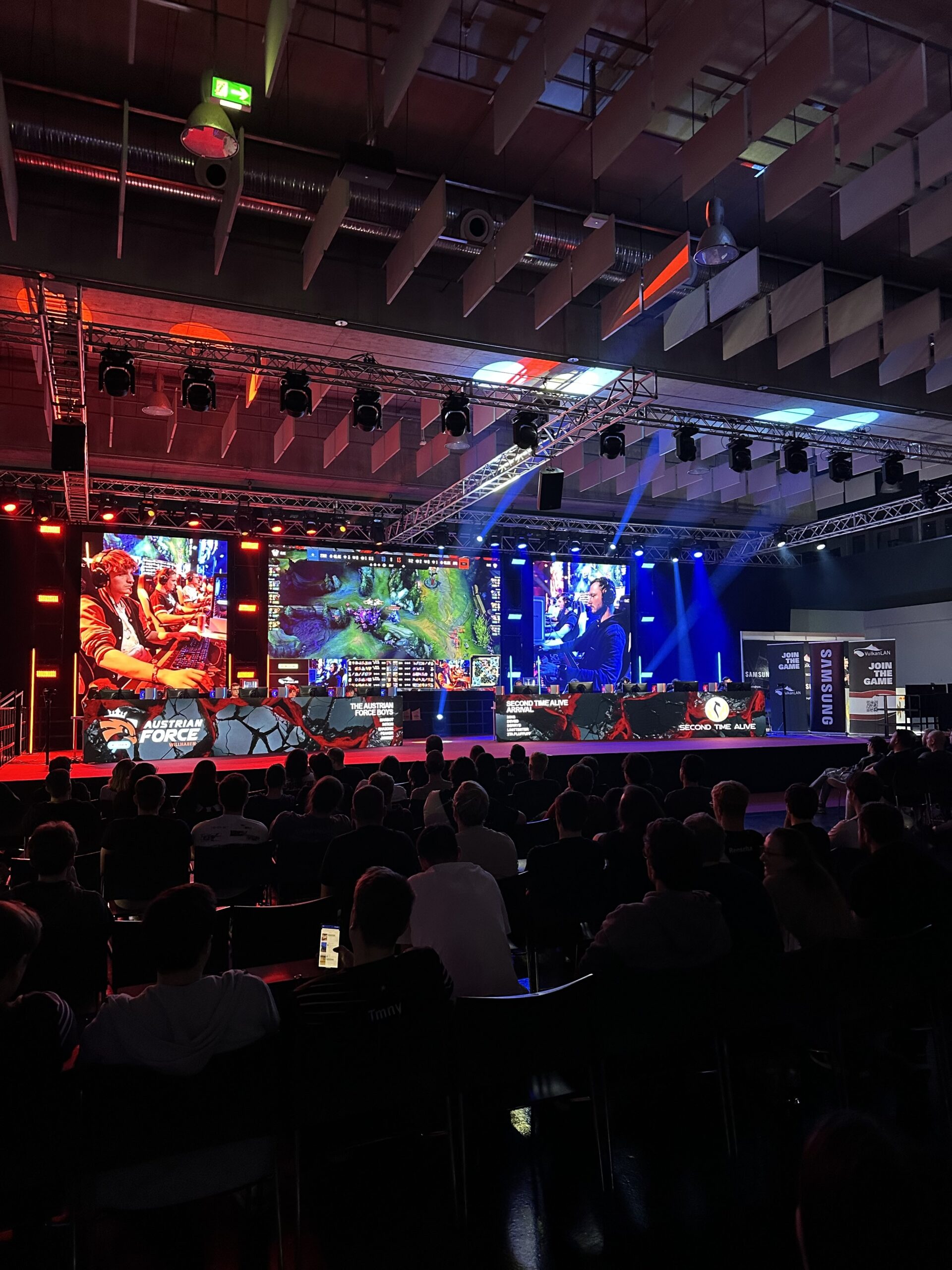

LED wall for esports stage:
- 1x LED Video Screen P3.91 (22bit, A10s Pro, 7680Hz) sized 6,5×3,5m center,
- 2x LED Video Screen P3.91 (22bit, A10s Pro, 7680Hz) sized 3×3,5m top sides
- 2x LED Video Screen P3.91 (22bit, A10s Pro, 7680Hz) sized 6x1m players in front
- Novastar MX30 processor, fiber connection to stage

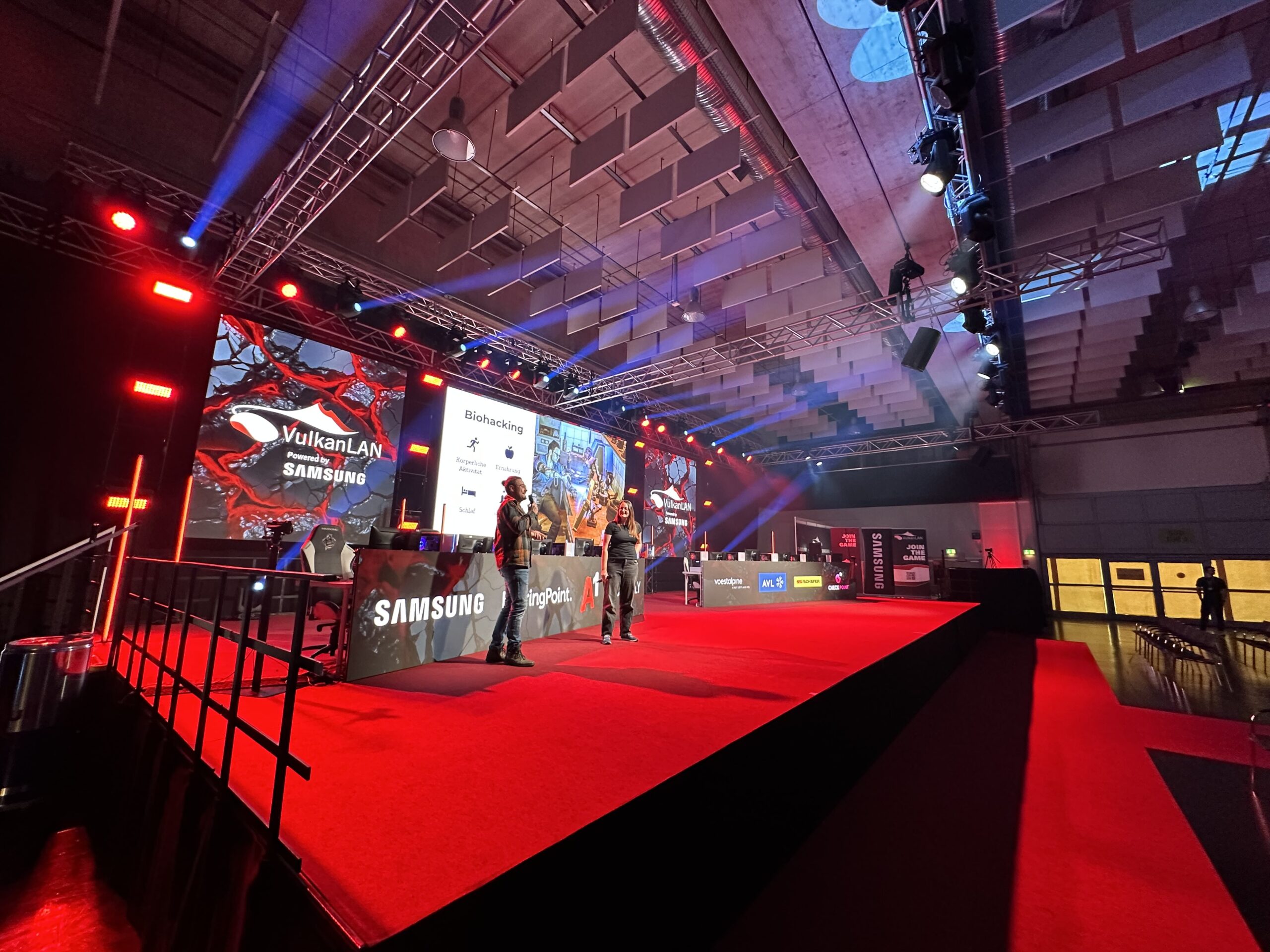

Stage/trussing Equipment:
- 4x Chainmaster 500kg D8+ motors (left-right trusses)
- 3x Chainmaster 500kg D8+ motors (for LED wall back side)
- 2x Chainmaster 320kg D8+ motors (for commentator lights)
- 10x Litec QD30 3m truss (for left-right and mid truss)
- 5x Litec QX30 3m truss (for LED wall)
- 8x Litec QD40 3m truss (for front-back truss)
- 1x motor controller
- black backdrop for stage
Full broadcasting of the main esports stage:
- PC: Observing of games (Threadripper, 3060, 1 PC, 1 backup laptop/cinematics for Valorant 3rd person)
- PC Production (i9, RTX3090, vMix Pro, 4x HDMI 4K60 capture, 4x SDI 8K capture/output, 7 camera inputs, 3-
camera live replay, with Motu 2 XLR audio interface for audio input - Main output recording (Atmos Sumo 19, recording disks)
- Livestream output PC (Ryzen 7, 4070Ti, streaming to 2 destinations – 16:9 YT, Twitch) and LED wall output PC

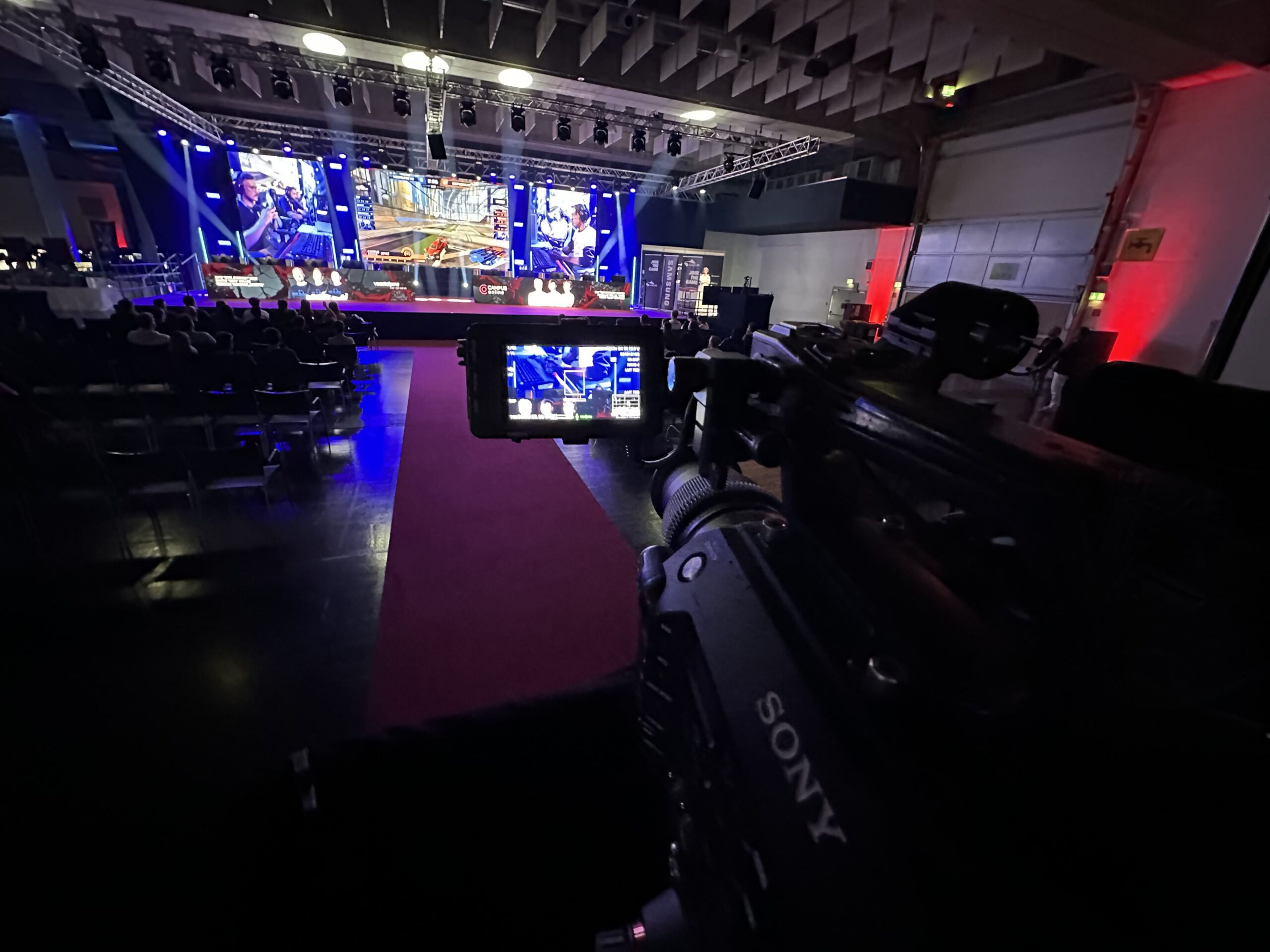

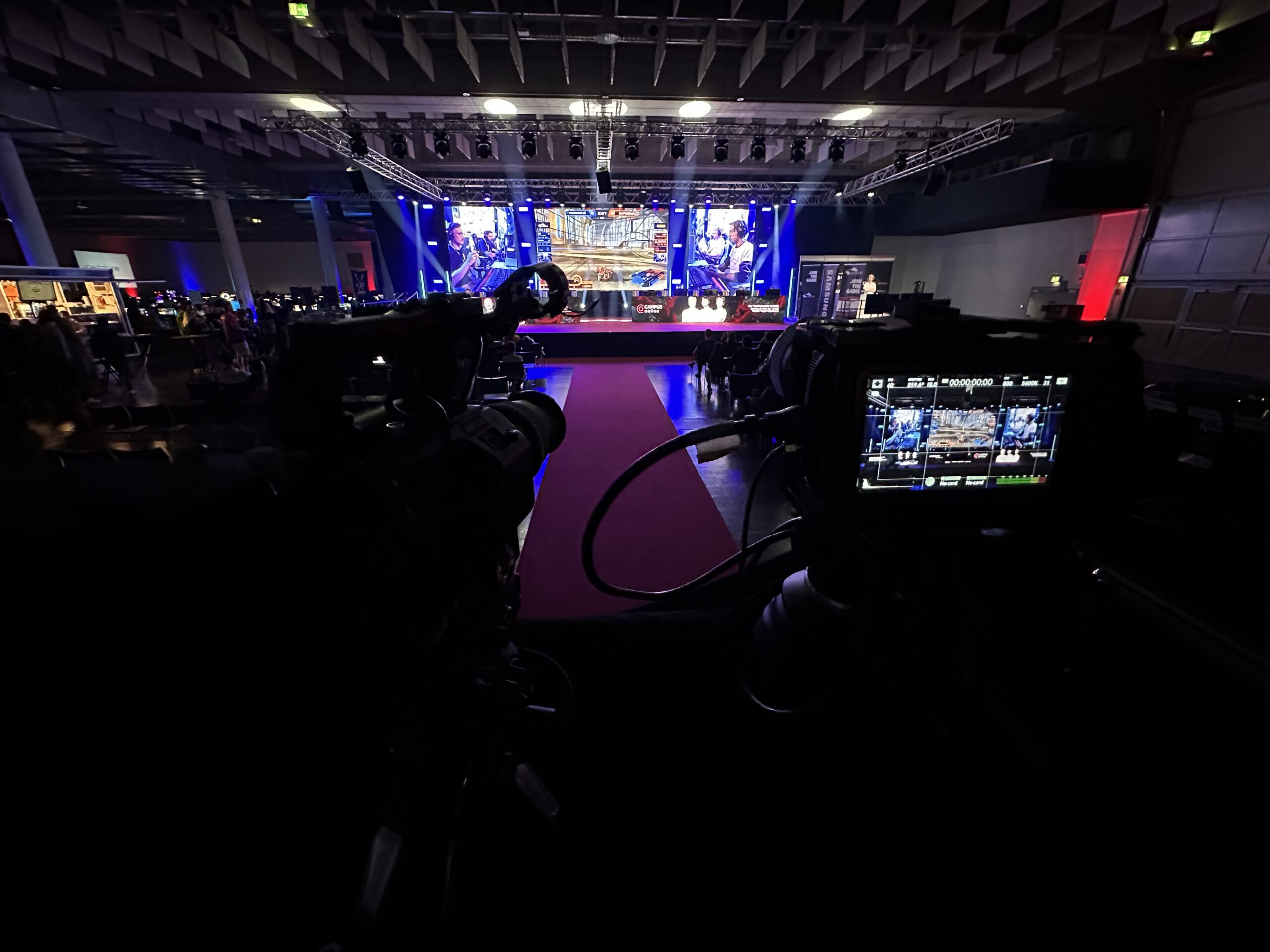

- Camera: Sony A7RV on DJI Ronin RS3 with wireless HDMI kit, moving camera
- Camera: Sony A7III on a tripod, for commentators
- Camera: Sony FS7 on a tripod, for a stage zoom
- Camera: Blackmagic Pocket Cinema Camera 4K for total wide shot
- Camera: 2x Sony A6300 camera with Sigma 16mm 1.4 lens
- Networking: stage closed network for production and cameras, with router and WiFi (Mikrotik CSS, Ubiquiti ER X, Ubiquiti AC AP)
- Broadcast design:
- integration of AMPX-prepared graphics, animations, intro videos, overlays, lower-thirds, countdowns – integration into broadcast software with
dynamic data updating) - Configuration and setup of CS2, Rocket League, Valorant and League of Legends overlay external overlay systems (Lexogrine)
- integration of AMPX-prepared graphics, animations, intro videos, overlays, lower-thirds, countdowns – integration into broadcast software with
